Peristaltic pump with low flow rate
The BT100-3J peristaltic pump is the ugraded version of the very popular BT100-2J peristaltic pump, and is mainly designed for laboratory applications.
It is configurable with various pump heads, and able to supply a flow rate of 0-380 ml/min
The speed can be adjusted manually or automatically through external control and it is easy to operate.
Functions and features
- Configurable with various pump heads, able to supply a flow rate between 0 and 380 ml/min
- Speed: 0.1 to 100 rpm, reversible
- Speed precision: 0.1 rpm
- Control mode: Membrane keypad, external control signal control and communication control is available
- Display: 3-digit LED displays current speed
- External control: Start/stop, direction and speed control (0-5V, 0-10V, 4-20 mA, 0-10 kHz optional external control modules)
- External control with only start/stop is also possible with the foot switch LP-JK-3
- Communication interface: RS485
- Prime key: For fast filling and emptying
- Memory function: Stores the running parameter automatically
- Compliances: CE, TÜV SÜD, RoHS
- Power supply: 100V-240V 50-60Hz
- Operating Temperature: 0-40 °C
- Relative humidity: <80%
- Weight: 2.38 kg
- IP-Rating: IP20
Operating Manual
- Supplied with English operating manual
Parameters
| Drive | Pump head | Tubing size (#) | Tubing dimensions Inner diameter x wall thickness (mm) |
Flow rate (ml/min/channel) at 0.1 - 100 rpm (measured with water) |
| BT100-3J | YZ1515x YZII15 1 channel with 3 rollers |
13 | 0.8 x 1.6 | 0.0063 - 6.3 |
| 14 | 1.6 x 1.6 | 0.025 - 25 | ||
| 19 | 2.4 x 1.6 | 0.042 - 41 | ||
| 16 | 3.2 x 1.6 | 0.077 - 76 | ||
| 25 | 4.8 x 1.6 | 0.16 - 160 | ||
| 17 | 6.4 x 1.6 | 0.267 - 266 | ||
| 18 | 7.9 x 1.6 | 0.37 - 380 | ||
| YZ2515x YZII25 1 channel with 3 rollers |
15 | 4.8 x 2.4 | 0.16 - 160 | |
| 24 | 7.9 x 2.4 | 0.267 - 266 | ||
| DG-1(6) DG-2(6) 1 or2 channels with 6 rollers |
Tubing with stops WT: 0.8-1.0 mm, ID: ≤ 3.17 mm |
Max. 48 | ||
|
DG-1(10) |
Tubing with stops WT: 0.8-1.0 mm, ID: ≤ 3.17 mm |
Max. 32 | ||
| DG15-24, 2 channels and 4 rollers |
16 | 1.6 x 1.6 | 0.082 - 81 | |
| 25 | 4.8 x 1.6 | 0.192 - 191 | ||
| 17 | 7.9 x 1.6 | 0.3 - 300 | ||
| DG15-28 2 channels and 8 rollers |
WT: 0.8-1.0 mm, ID: ≤ 3.17 mm |
Max. 75 |
Note: The flow rate with LP-YZ1515x with 6 rollers will be 2/3 of the flow rate with 3 rollers.
VIDEOS
Demonstration of the BT100-3J basic peristaltic pump
| Certifications/Compliances | CE, TÜV SÜD, RoHS |
| Weight | 2.38 kg |
| IP-Rating | IP20 |
| Speed | 0.1-100 rpm |
| Power supply | 100V-240V (20W) 50-60Hz30W |
| Operating Temperature | 0-40 °C |
| Relative humidity | <80% |
| Size (Length) | 232 mm |
| Size (Height) | 149 mm |
| Size (Width) | 142 mm |

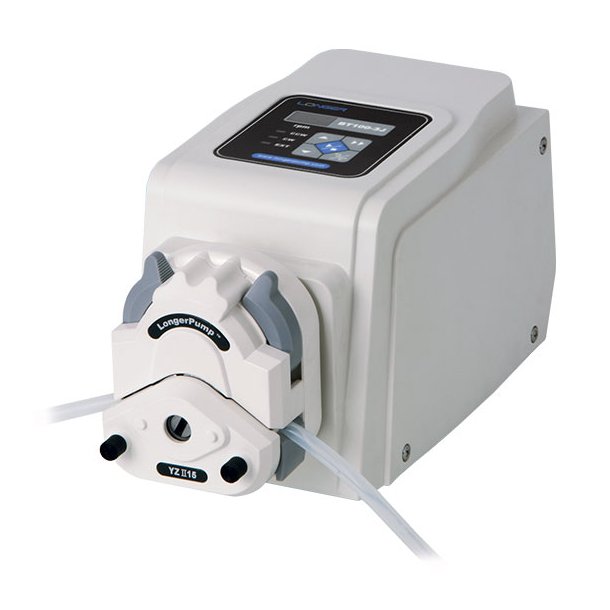

| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| BT100-3J-Peristaltic-Pump-2022.pdf | 3.62MB | Download | |
| BT100-3J-Peristaltic-Pump-2023---DRIFTON.pdf | 1.10MB | Download |
