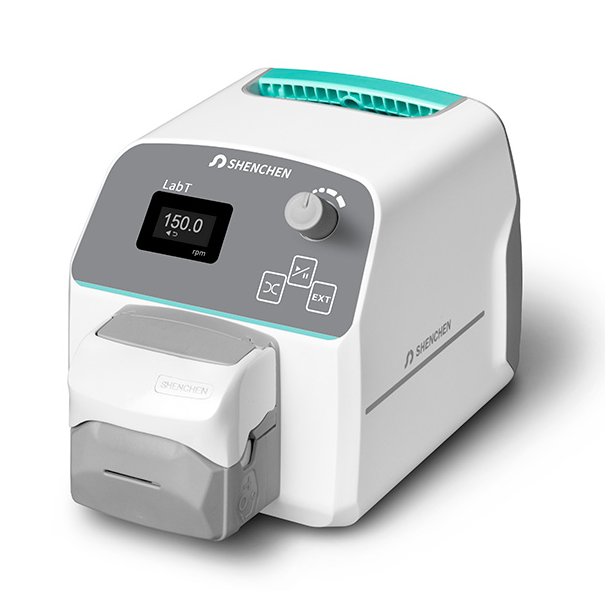

Compact peristaltic pump with low flow rate
LabT with pump head UD15 or KT15 is a compact, simple, low vibration and quiet peristaltic pump with an ABS plastic housing.
With speed ranges between 0.1 - 350 rpm you have the ability to run at custom speeds for your application.
The OLED display gives you an easy overview of speed, direction and external control.
This pump must be ordered with the pump head you need for your application as it is not easy to replace afterwards.
Technical Specifications
- Flow rate range: 0.0033-930 ml/min
- Speed range: 0.1 - 350 rpm
- Speed resolution: 0.1 rpm
- Display: 0.96 "OLED display
- Operation: Rotary switch and mechanical keypad
- Speed control: Rotary switch
- External signal for speed control: 0-5V, 4-20 mA (standard), 0-10V (optional)
- External signal for start / stop and direction: Switch signal
- Communication interface: USB connector, RS485 interface (MODBUS protocol, RTU mode)
- Power supply:
- Output: DC 24 V / 1.25 A
- Input: AC100 V-240 V, 50 Hz/60 Hz
- Pump housing material: ABS plastic
- Pump housing dimensions: (LxDxH): 190x128x135 mm
- Operating temperature: 0-40°C
- Relative humidity <80%
- IP rate: IP31
- Weight: 1.1 kg
- Power consumption: <15 W
Operating Manual
- Supplied with English operating manual
Parameters
| Motor | Pump head | Tubing size (#) | Tubing dimensions (IDxWT) | Flow rate (ml/min/channel) at 0,1 - 350 rpm (measured with water) |
| LabT | KT15 (with 4 rollers) |
13# | 0.,8x1.6 | 0.0033-11.55 |
| 14# | 1.6x1.6 | 0.015-54.6 | ||
| 19# | 2.4x1.6 | 0.028-100.10 | ||
| 16# | 3.1x1.6 | 0.047-166.95 | ||
| 25# | 4.8x1.6 | 0.093-326.55 | ||
| UD15 (with 4 rollers) |
16# | 3.1x1.6 | 0.08~280 | |
| 25# | 4.8x1.6 | 0.16~580 | ||
| 17# | 6.4x1.6 | 0.26~930 |
The UD15 pump head has 1 channel, and 3 different sizes of PharMed tube sets with holders are included.
Video
How to install the tubing in pump head UD15
.
| Weight | 1.1 kg |
| Material | ABS plastic housing |
| CE marking | Yes |
| IP-Rating | IP31 |
| Speed | 0.1 - 350 rpm |
| Flow rate | 0.08 ml/min - 930 ml/min/channel |
| Operating Temperature | 0-40°C |
| Relative humidity | < 80% |
| Size (Length) | 190 mm |
| Size (Height) | 135 mm |
| Size (Width) | 128.3 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| LabT--Basic-PeristalticPump-2023-Drifton.pdf | 2.50MB | Download |
