LP-BT300-2J Peristaltic Pump
  • LP-BT300-2J Peristaltic Pump
  • LP-BT300-2J Peristaltic Pump
  • LP-BT300-2J Peristaltic Pump
  • LP-BT300-2J Peristaltic Pump
  • LP-BT300-2J Peristaltic Pump

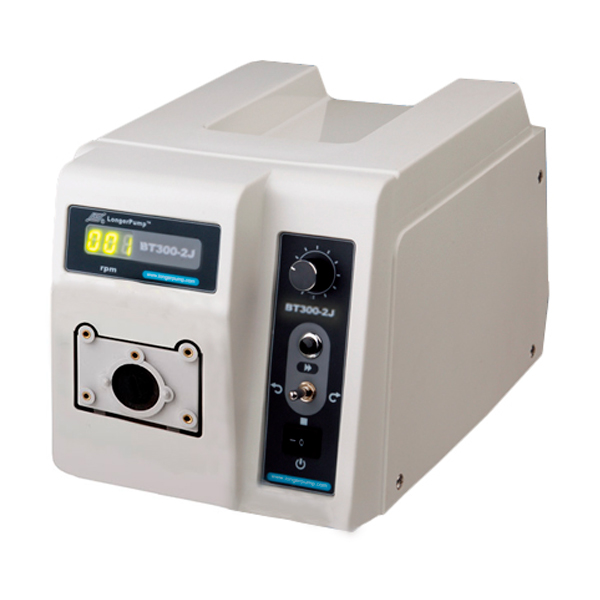

Representative image only

LP-BT300-2J Peristaltic Pump

Price from EUR 982.40

(excl. VAT)

The LP-BT300-2J peristaltic pump is mainly designed for laboratory use and delivers flow rates up to 1500 ml/min.
The speed can be adjusted manually or automatically through external control interface.

Specifications

  • Speed: 1-300 rpm, reversible
  • Speed precision: 1 rpm
  • Max. flow rate: 1500 ml/min/channel
  • Speed control: Combined rotary encoded switch and button, support for external signal control and communication control
  • Display: 3-digit LED displays current speed (rpm)



The pump can be equipped with the FK-1C dispensing controller for dispensing function.



Even though your desired configuration is out of stock, it can be delivered in about 2 weeks.

Read more
LP-BT300-2J Peristaltic Pump
Items

Price
Note
Quantity
  • LP-BT300-2J - without pump head

    Types: LP-BT300-2J - without pump head

    Model/Product no.: LP-BT300-2J

    EUR 982.40

    (excl. VAT)

    in stock

    Weight: 5 kg

  • incl. YZ1515x pump head with 3 rollers

    Types: incl. YZ1515x pump head with 3 rollers

    Model/Product no.: LP-BT300-2J/YZ1515X

    EUR 1,316.20

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

  • incl. YZ1515x pump head with 6 rollers

    Types: incl. YZ1515x pump head with 6 rollers

    Model/Product no.: LP-BT300-2J/YZ1515X(6)

    EUR 1,348.60

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

  • incl. YZ2515x pump head with 3 rollers

    Types: incl. YZ2515x pump head with 3 rollers

    Model/Product no.: LP-BT300-2J/YZ2515X

    EUR 1,316.20

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

  • incl. YZII15 pump head with 3 rollers

    Types: incl. YZII15 pump head with 3 rollers

    Model/Product no.: LP-BT300-2J/YZII15

    EUR 1,316.20

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

  • incl. YZII25 pump head with 3 rollers

    Types: incl. YZII25 pump head with 3 rollers

    Model/Product no.: LP-BT300-2J/YZII25

    EUR 1,316.20

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

  • incl. DG15-24 pump head with 2 channels and 4 rollers

    Types: incl. DG15-24 pump head with 2 channels and 4 rollers

    Model/Product no.: LP-BT300-2J/DG15-24

    EUR 1,516.20

    (excl. VAT)

    approx. 3 weeks delivery

    Weight: 5 kg

Medium Flow Rate Peristaltic Pump

The LP-BT300-2J peristaltic pump is mainly designed for laboratory use and delivers flow rates up to 1500 ml/min.
The speed can be adjusted manually or automatically through external control interface.
This LP-BT300-2J peristaltic pump stores the running parameters automatically and is easy to operate.

The pump can be equipped with the FK-1C dispensing controller for dispensing function.

Specifications

  • Speed: 1-300 rpm, reversible
  • Speed precision: 1 rpm
  • Max. flow rate: 1500 ml/min/channel
  • Stepper motor
  • Speed control: Combined rotary encoded switch and button, support for external signal control and communication control
  • Display: 3-digit LED displays current speed (rpm)
  • External control: Start/stop, direction and speed control (0-5V, 0-10V, 4-20 mA, 0-10 kHz, optional external control modules)
  • External control with only start/stop is also possible with the foot switch LP-JK-3
  • Memory function:  Stores the running parameters automatically
  • Communication interface: RS485
  • Prime key: For fast filling and emptying
  • Power supply: AC 90V-260V/48W
  • Operating temperature: 0 to 40 °C
  • Relative humidity: < 80%

Operating Manual

  • Supplied with English operating manual

Parameters

Drive Pump head Tubing size (#) Flow rate (ml/min/channel) at 1 - 300 rpm (measured with water) Weight (kg)
LP-BT300-2J LP-YZ1515x, LP-YZII15 (3 rollers) 13 0.063 - 19 4.0
14 0.25 - 75
19 0.416 - 125
16 0.77 - 230
25 1.6 - 480
17 2.6 - 800
18 3.6 - 1100
LP-YZ2515x, LP-YZII25 (3 rollers) 15 1.6 - 480
24 2.6 - 800
LP-YZII25 (3 rollers) 35 3.6 - 1100
36 5.0 - 1500
DG15-24, 2 channels and 4 rollers 16 0.82 - 245 4.4
25 1.92 - 575
17 3.0 - 900

Note: The flow rate with LP-YZ1515x with 6 rollers will be 2/3 of the flow rate with 3 rollers

Video

External control of the BT300-2J peristaltic pump using RS485 connection and a PC



Weight 3.6 kg
CE marking Yes
IP-Rating IP31
Size (Length) 285 mm
Size (Height) 180 mm
Size (Width) 207 mm
Caption Representative image only

Category: Accessories

Items
Price
Note
Quantity
Title Type Size Download
BT300-2J-Operating-Manual.pdf PDF 169.04KB Download
LP-BT300-2J_LP-BT600-2J_peristaltic-pump_2019.pdf PDF 1.18MB Download
