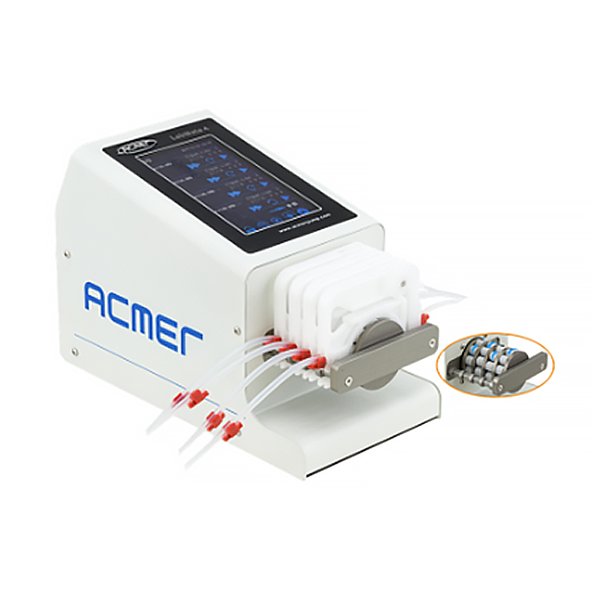

LabMate Peristaltic Pump with Individual Channel Control
LabMate is a compact peristaltic pump which is easy to use and occupies little desk space. It has a 5" high definition touch screen and 2-4 individually controllable channels.
Features
- Independent channels: Each channel work independently. Volume, mode, tubing, speed, time etc. can be set separately.
- Working mode: Flow rate Mode, Volume/Time Mode, Volume/Rate Mode, Time/Flow Rate Mode.
- Channel off: Any channel can be disabled through the interface. The channel can then not be set and configured while being disabled.
- High-definition touch screen: 5" touch screen with 800*480 resulution.
- Calibration: Each-channel can be calibrated independently, and the calibration parameters are stored separately.
- On-line adjustment: Speed and flow rate can be adjusted during work.
- Prompt function: Real-time display of the maximum flow and speed available for different size of tubing. Dynamic display of the parameters for each channel.
- External control on/off: External level signals (5-24V) or contact signals to control start/stop of each channel.
- Communication control: RS485/USB (optional). Touch to set address and baud rate.
- Output status: Each channel independently outputs status of start/stop and direction.
- Pump head cartridge material: POM (PVDF can be ordered)
- Number of rollers: 10 rollers.
Technical Parameters
- Speed range: 0.01 - 150rpm
- Speed resolution: 0.01rpm
- Compatible Tubing: ID ≤3.17mm, Wall thickness:0.76～1mm
- Flow rate per channel: 0.032ml/min ～ 48ml/min
- Filling Volume Range: 0.1μl ～ 9999.999L
- Timing Range: 0.1s ～999.9hr
- Cycles: 0 ～65535, "0" is for infinite loop
- Back suction angle: 0 ～65535°
- Dimensions: 252.5*126*165 (mm)
- Power supply: AC90-264V 50/60 Hz
- Working environment: Temperature: 0-40℃, Humidity 20-80% RH non-condensing
- IP-rate: IP31
Parameters
|
Tubing Dimensions |
Flow rate (ml/min) |
|
0.5*0.8 |
0.0013~2 |
|
1*1 |
0.006~9 |
|
2*1 |
0.022~33 |
|
3*1 |
0.032~48 |
